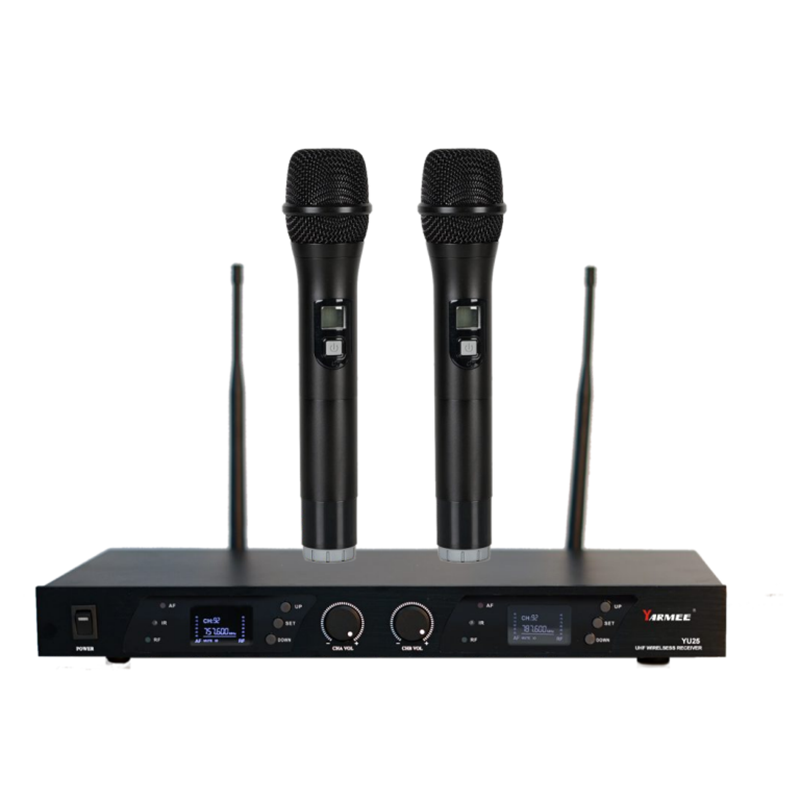

2 channels UHF wireless microphone YU25
Overviews
Adopt UHF610-790MH2 PLL frequency synthesizer technology, adjustable transmitter frequency andpowerAdopt multi-channel high band and intermediate band frequency selective filtering. fully eliminate interference signalBuilt-n feedback eliminating technology which can decrease the feedback and noise effectivelyBuil-in multiple noise detecting circuit and TONE-LOCK system to make sure the systemhas strong ant-jamming functionPerfect performmance with the best chips and components, adopt SMD original mount design, enhancethe product quallity and stabillity. Automatic scanning and selecting the frequency, easy for installation and using. Operation distance up to 100 meters with the best condition, 50 meters in norrmal condition.
Specifications
| MODEL | Receiver unit |
| System | Two/Four/Eight-channels receiver |
| Frequency band | UHF 610-670MHz; UHF 730-790MHz |
| Receiver type | PLL UHF Synthesized |
| Frequency response | 50Hz-18KHz(-3dB) |
| T.H.D | <0.5%1KHZ |
| Modulation mode | >105dB |
| S/N ratio | >105dB |
| Dynamic range | >105dB |
| Audio output | Balanced:600mV; Unbalanced: 2V |
| Power supply | DC12V 110-230Vca adaptor |
| Power consumption | 8W |
| Dimensions(WxDxH) | 483x81x44mm 1U Rack standard 19 |
| MODEL | Transmitter unit |
| System | Wireless Microphone Unit |
| Transmission mode | UPLL Multi-channes, up 200 frequency preset for each frequency band |
| Receiver type | UHF 610-670MHz; UHF 730-790MHz |
| Frequency response | 50Hz-18KHz(-3dB) |
| Modulation mode | <0.5%1KHZ |
| RF Output power | High level: 10 dBm; Lower level: 5 dBm |
| Max deviation | +45KHz |
| Power supply | Battery: 2xAA 1.5V |
| Microphone type | Cardioid electrete condenser |
| Gooseneck length | 400mm |
| Dimensions(WxDxH) | 168x125x57mm |
